PVC Heating Wire

  • 1285-PVC Electric Heating Wire

  • Type:PVC Heating Wire
  • Product specifications:Spiral structure, single filament structure, multi-core structure
  • Product model:1285
  • Product color:White,Red
  • Consult immediatelyClick through volume:2613

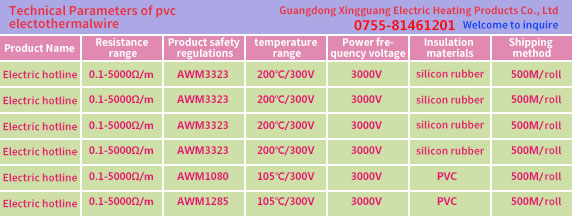

Parameter table

Product details

Product Name : PVC Electric Heating Wire
Product Safety : AWM1285
Other Safety Regulations   : AWM1080
Insulation Material :PVC< Environmental protection >
Voltage Standard   :105℃,300V
Product Packaging :500M/Roll < Provide processing services >
Product Color    :White, red, transparent, yellow, blue, green, brown

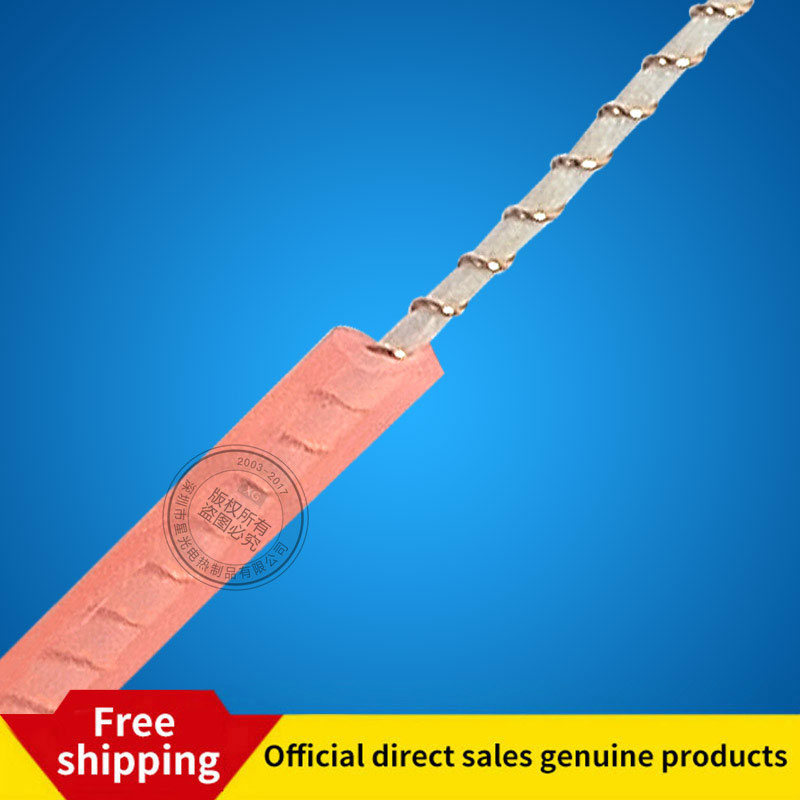

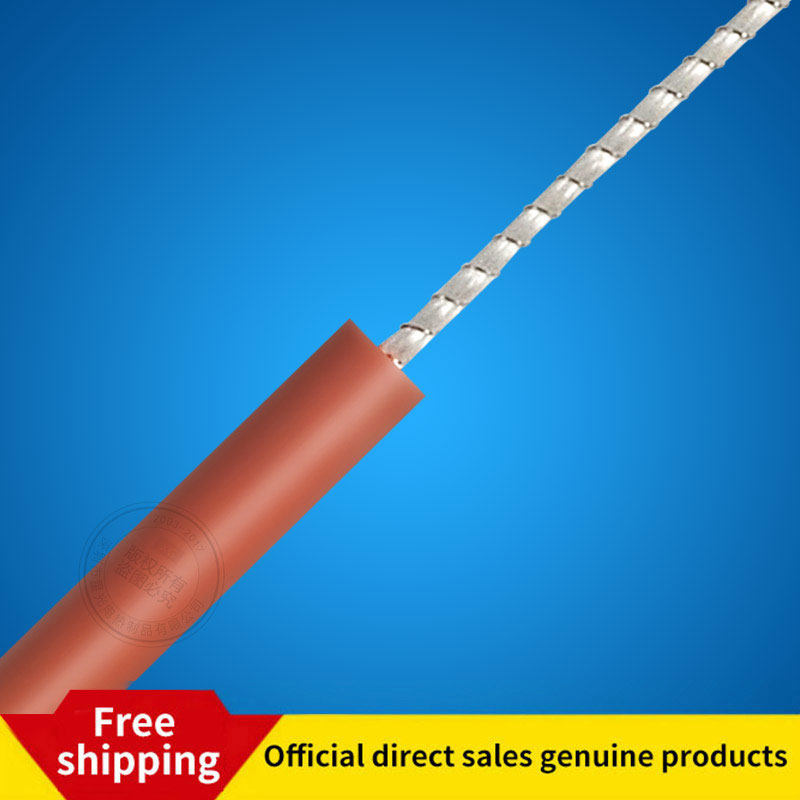

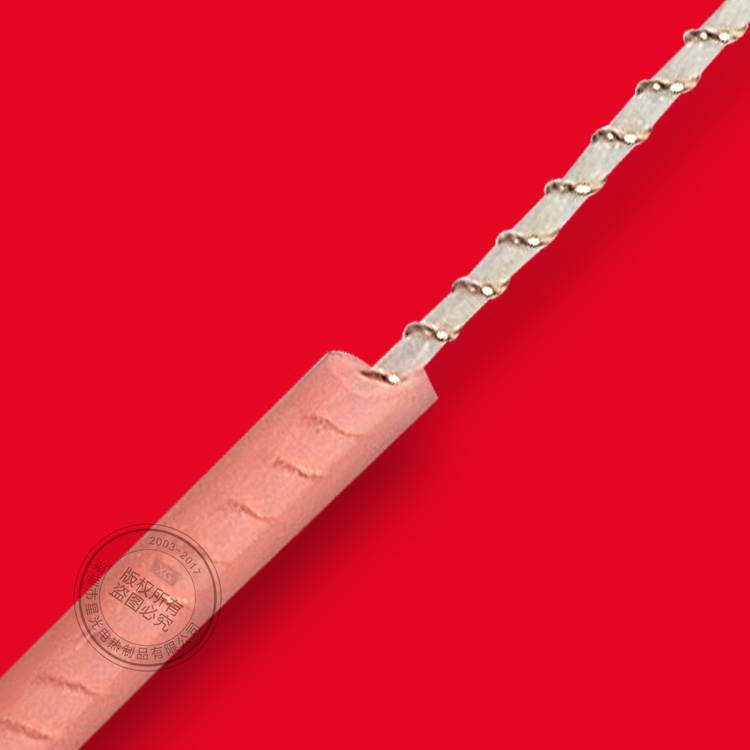

PVC Electric Heating Wire
PVC electric heating wire, referred to as the heating wire, also known as PVC heating wire, the internal use of nickel-chromium alloy, Constantan alloy, copper-nickel alloy as the heating conductor, using PVC as the insulation layer, with <ω> as the resistance unit, thickness unitcolor optional, product temperature limit of 105℃, long-term 80℃ below the service life of up to 8-12 years, Product tensile and bending performance is very good, usually can withstand the tension of 35KG or less, product bending reference UL758 standards, 25000 times as the technical standard, the product cost is low, is recognized as one of the applicable heating components by the industry

Other Product by XingGuang
Silicone electric heating wire , PVC heating wire , Carbon fiber heating wire , Teflon heating wire , double layer heating wire , the far infrared heating sheet , Carbon fiber heating sheet , Low voltage heating sheet , Soft heating sheet , Aluminum foil heater , Non-woven heating sheet , Massager heating sheet .

Product features<Picture>

Application field
Household appliances, medical use, rice cooker, electric towel box, microwave oven, electric belt, massager, massage chair, hot pad, foot massage machine, jade mattress, medical equipment, farming heating, electric towel rack, refrigerator defrost, cold storage antifreeze, toilet lid, electric heater, electric floor heating, towel thermostat, etc., electric bra, electric eye mask, electric insole, mobile sauna room, prostate treatment Therapy instrument, Chinese medicine kit, hot compress salt kit, foot bath,

Product Name : PVC Electric Heating Wire
Product Safety : AWM1285
Other Safety Regulations   : AWM1080
Insulation Material :PVC< Environmental protection >
Voltage Standard   :105℃,300V
Product Packaging :500M/Roll < Provide processing services >
Product Color    :White, red, transparent, yellow, blue, green, brown

PVC Electric Heating Wire
PVC electric heating wire, referred to as the heating wire, also known as PVC heating wire, the internal use of nickel-chromium alloy, Constantan alloy, copper-nickel alloy as the heating conductor, using PVC as the insulation layer, with <ω> as the resistance unit, thickness unitcolor optional, product temperature limit of 105℃, long-term 80℃ below the service life of up to 8-12 years, Product tensile and bending performance is very good, usually can withstand the tension of 35KG or less, product bending reference UL758 standards, 25000 times as the technical standard, the product cost is low, is recognized as one of the applicable heating components by the industry

Other Product by XingGuang
Silicone electric heating wire , PVC heating wire , Carbon fiber heating wire , Teflon heating wire , double layer heating wire , the far infrared heating sheet ,
Carbon fiber heating sheet , Low voltage heating sheet , Soft heating sheet , Aluminum foil heater , Non-woven heating sheet , Massager heating sheet .

Product features<Picture>

Application field
Household appliances, medical use, rice cooker, electric towel box, microwave oven, electric belt, massager, massage chair, hot pad, foot massage machine, jade mattress, medical equipment, farming heating, electric towel rack, refrigerator defrost, cold storage antifreeze, toilet lid, electric heater, electric floor heating, towel thermostat, etc., electric bra, electric eye mask, electric insole, mobile sauna room, prostate treatment Therapy instrument, Chinese medicine kit, hot compress salt kit, foot bath,
